Technologies Muscle Conditioning
Digital Sequential Stimulator
PT-11
Personal Fitness and Trainer

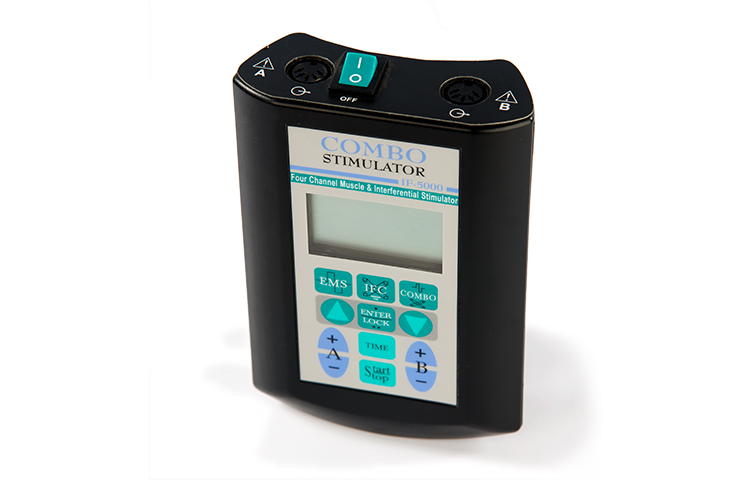

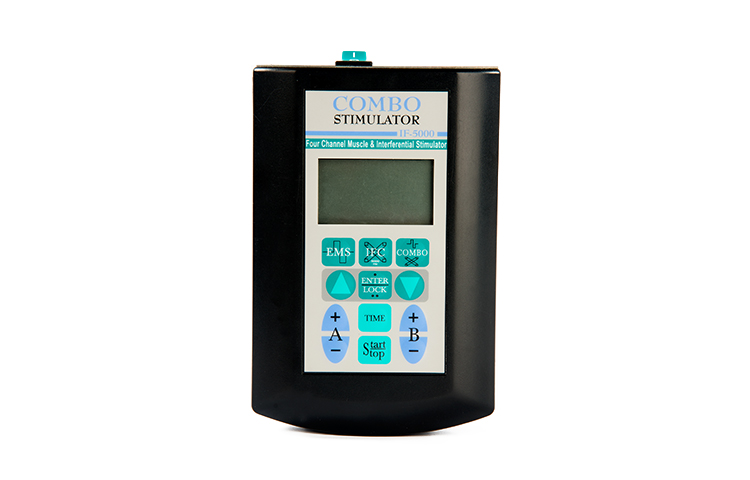

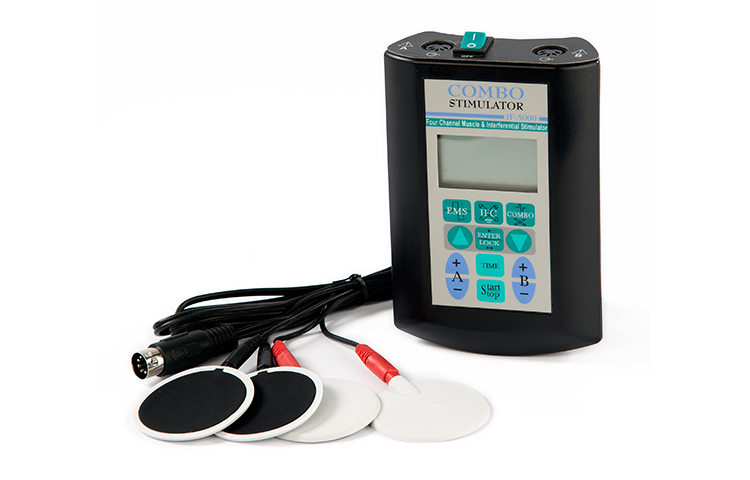

Combo Stimulator IF-5000 is a Microcomputer Controlled Digital four-channeled unit through two outputs. It is designed to provide Muscle Stimulation & Interferential Stimulation current waveforms to treat painful muscles. The unit can be programmed to provide either of the waveform using either of the output. Combo stimulation can be selected to provide interferential for certain time in one output followed by Muscle timulation in the other output.
- Features
- Technical Specification
- Strong and sturdy aluminum constructed slimming equipment.
- Device is loaded with complete slimming program.
- Comprises of 12 channels to treat 12 different muscle group.
- Separate Intensity Control on every channel.
- 5 Different treatment programs.
- Digital Display of Contractions, Relaxation, Mode and Time.
- 2 Patients can be treated simultaneously with different modes.
APPLICATIONS & BENEFITS
- Gain explosive speed and power
- Training Recovery
- Improve endurance
- Recover faster
- Reduced risk of injury through proper warmup
- Build muscle size and density
- Increase vertical and muscle reaction time
- Increase local blood flow to sore and achy muscles
- Increased athletic performance
| Outputs / Channels | 2/4/2018 |
| Modes | EMS, IFT, IFT Sequencing |
| Frequency IFT | 5000 Hz |
| Frequency Sweep | 1 – 10 (Low), 80-150 Hz (High) |
| EMS | 1 – 150 Hz |
| Russian | 250 Hz |
| Sweep | 50 Hz |
| Pulse Width | 50 – 400 µS |
| Ramp Up/Down | 1 – 9 Sec |
| Contraction Time | 1 – 30 Sec. |
| Relaxation Time | 0 – 30 Sec. |
| Output Current | 100mA peak to peak |
| Treatment Time | 1 – 60 Min. |
| Combo Sequential | 1 – 30 Min. |
| Power | 4×1.2V NiMH AA batteries |
